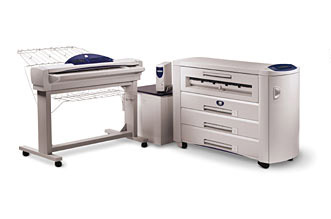

Xerox 510 Copier Printer Scanner

PDF Xerox 510 Copier Printer Scanner User Documentation
Xerox 510 Copier Printer Scanner Brochure
Benefits
  • Scalable to customize a solution to your exact print/scan needs
  • Upgradable any time, without replacing equipment
  • Meets diverse business goals, from a small workgroup to a high-volume print room
  • Businesses maximize investment dollars; users profit from identical image quality and software capabilities
  • Total cost of ownership is lowest on the market for comparable printers and volumes
Features
  • FreeFlow Accxes™ Controller delivers outstanding connectivity, RIP speed and concurrency
  • Over 60 configurations of printer and scanner speeds, on-line media, and color or monochrome scanning
  • Print at speeds of 5, 7 or 10 D-size prints per minute
  • Scan to multiple file formats, including PDF, storing full color files in 24-, 8- or 4-bit sizes
  • Software Feature Keys provide unprecedented control over system configurations
Key Applications
  • Workgroups producing CAD and GIS documents
  • Businesses with growing/changing print requirements

Xerox 510 Copy System Performance

Rated speed 4.5 ips
Resolution 400 x 400 dpi
Copy/Scan Speed 2 ips at 400 dpi (4 ips with optional upgrade)
Scan speed 4 ips at 200 dpi (8 ips with optional upgrade)
Throughput 5, 7, or 10 D-size (A1) prints per minute
Other Copying Features
  • Concurrency: Scan/Copy/Print
  • Digital Retention: Up to 999 copies from a set of at least 100 standard E size (A0) drawings
  • Copy Modes: Line, Mixed, Photo
  • Imaging: Inverse, Mirroring, Margins, Rotation, 7-copy contrast levels
  • Output: Auto/Manual Roll Selection and Scaling
Capabilities
Printed Sides Simplex
MICR No
Technology
PDLs With FreeFlow Accxes Controller: HP-GL2, FileNET, Xerox Emulation 150, Versatec Data Standards, CalComp, TIFF 6.0, NIRS, CALS 1&2, RLE, CGM, VCGL
Optional: Adobe PostScript 3, PDF
Network Interfaces IEEE 1284 Bi-directional Centronics, SCSI-2, 10/100 Ethernet (TCP/IP) supports 10/100 BaseT, Optional External Print Server
CPU Power PC
Process/Imaging Xerographic LED
Memory 256 MB standard, expandable to 512 MB
Hard Disk 80 GB IDE
Paper Handling
Paper sources 1 to 3 rolls
Standard paper capacity up to 650 feet
Media Dimensions - Minimum 8.5 x 11 inches
Media Dimensions - Maximum Print: 36" x 82'
Copy: 36" x 100'
Media Types Bond, vellum, film, tracing paper
Input
Other Input Devices Wide Format Scan System
Output
Stacker Flat Stacker: up to 100 prints
Optional High Capacity Stacker Optional High Capacity Stacker: Stacker 1000 stacks up to 1,000 mixed size prints
Print Controllers
Digital Front Ends FreeFlow Accxes Controller
Environmental
Electrical Requirements 115V @ 20A; 208-240V @ 20A
Dimensions W: 59.3"; D: 42.3"; H: 22.5"
