- Provides the power and versatility you need to process jobs quickly and reliably to meet your deadlines
- Outstanding image quality adds value to your transactional documents and opens the door to transactional/promotional applications
- Industry-leading speed, versatile finishing, and color integration let you offer polished, professional publishing capabilities
- FreeFlow™ Print Server delivers maximum productivity and reliability while minimizing waste and delivering an excellent return on your investment
- Automatic Meter Reads (AMR) ensure accurate and timely billing (where available)
|
- One of the fastest in the industry in print speed - print at 110 and 125 ppm
- Handles high volume jobs, as well as overflow jobs and small jobs, quickly and efficiently
- High-capacity stacker neatly stacks up to 5,000 sheets with a removable cart for large volumes of transactional documents such as statements
- Post-process insertion module enhances the effectiveness of your documents by integrating full color covers or inserts at a fraction of full-color costs
- Feeding capacity to handle long-run jobs as well as jobs requiring multiple stock types; up to eight trays with 8,250 sheet capacity
- Robust inline finishing options such as collating, variable-length stapling, hole punching, subset finishing, C-/Z-/Engineering Z/bi-fold output, and saddle-stitch booklet making
- Small footprint ideal for distributed print and satellite office locations that need to handle both transaction-based data streams and personalized data streams
- FreeFlow Print Server comes standard and integrates into production print environments to boost flexibility:
- Receive, RIP, and print jobs concurrently
- Process native transaction datastreams (IPDS/LCDS), Personalized Data Streams (VIPP, PPML), and Publishing Data Streams (PDF, PCL, PS)
- Automate and customize job workflows with powerful queues and hot folders
- Process and manage jobs submitted from virtually anywhere
- Remotely manage multiple production devices, including monochrome, highlight color, and full color devices
- Allows unmatched flexibility and control in security settings for users and groups
- Provides a recognized, integrated enterprise production workflow across your entire printer fleet for powerful job control, time-saving efficiencies, and unified operations
|
- Time-critical transactional/promotional documents
- Bills
- Invoices
- Statements
- Direct mailers
- Professionally finished publishing applications
- Booklets
- Brochures
- Newsletters
- Personalized marketing
|

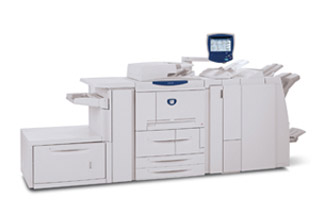

4112/4127™ Enterprise Printing System Performance
|
| Rated speed |
4112 Enterprise Printing System: 110 ppm
4127 Enterprise Printing System: 125 ppm |
| Resolution |
Print: 2400 x 2400 dpi
RIP: 1200 x 1200 dpi |
| Line Screens |
106 lpi (default) or 150 lpi (high quality mode) |
| Recommended average monthly volume |
70,000 - 350,000 pages per month |
| Duty cycle |
600,000 pages per month |
| Capabilities |
| Printed Sides |
Duplex |
| MICR |
No |
| Technology |
| PDLs |
LCDS, IPDS, VIPP, PPML, PostScript, PCL, PDF |
| Network Interfaces |
TCP/IP, SNMP, Novell® IPX, AppleTalk®, IPP |
| User Interface |
Standard color flat panel monitor, keyboard, mouse |
| CPU |
SUN® Ultra 20 M2 platform |
| Memory |
2 GB |
| Hard Disk |
160-GB, SATA |
| Print Engine |
Xerographic |
| Paper Handling |
| Paper sources |
6 |
| Standard paper capacity |
4,250 sheets |
| Maximum paper capacity with options |
8,250 sheets |
| Media Dimensions - Minimum |
4 x 6 inches |
| Media Dimensions - Maximum |
13 x 19.2 inches |
| Media Weight - Minimum |
16 lb bond |
| Media Weight - Maximum |
140 lb index |
| Media Types |
Carbonless, DocuCards, Document Folders, synthetics, tabs, labels, specialty media, coated stocks
Refer to customer expectations setting document for supported media and capabilities for coated stocks |
| Input |
| Tray 1 |
1,100 sheets |
| Tray 2 |
1,600 sheets |
| Tray 3 |
550 sheets |
| Tray 4 |
550 sheets |
| Tray 5 |
250 sheets |
| Optional High Capacity Feeder |
- High Capacity feeder: Two trays with 2,000 sheets each, 8.5 x 11" (A4)
- Oversize High Capacity Feeder: Single tray with 2,000 sheets, up to 13" x 19.2"
|
| Other Input Devices |
Standard Inserter: 200 sheets |
| Finishing |
| Finisher |
Standard Finisher:
- 3,000 sheet stacker capacity
- 500 sheet top tray capacity
- Variable-length stapler - Staples up to 100 sheets, multi-position single or dual
- 2 and 3 hole punch (North America), 2 and 4 hole punch (Europe and South America) 4 hole Swedish punch
- Built-in bi-directional de-curler
|
| Booklet Making |
Booklet Maker Finisher: All the features of the Standard Finisher plus
- Creates saddle-stitched booklets of up to 25 sheets, for a total of 100 imposed pages
- Creates booklets from 8.5" x 11"/A4, or 8.5 x 14", 11" x 17"/A3, or 12" x 18"/SRA3
- Allows integration of color covers
|
| Stacker |
High Capacity Stacker:
- 5,000-sheet offsetting output stack tray (7.2" x 8.3" up to 13" x 19.2" (B5 LEF to SRA3)
- 500-sheet top tray capacity
- Includes one rollaway cart - additional carts available
|
| Folder |
Optional Folder:
- C-fold and Z-fold of 8.5" x 11"/A4
- Bi-fold 8.5 x 11"/A4 or 11 x 17"/A3
- Engineering Z-fold folds 11" x 17"/A3 for insertion into 8.5 x 11"/A4 sets
- Print on inside or outside of folded paper
|
| Print Controllers |
| Digital Front Ends |
FreeFlow™ Print Server |
| Environmental |
| Electrical Requirements |
Print Engine: 208–240 VAC, 60/50 Hz, 15/13 amp service
Optional Feeding/Finishing: Each module requires 100 – 240 VAC, 60/50 Hz power |
| Dimensions |
With Standard Finisher: W: 93.5"; D: 30.8"; H: 57.3"
With Standard Finisher and High Capacity Feeder: W: 100.4"; D: 30.8"; H: 57.3"
With Booklet Finisher: W: 93.7"; D: 30.8"; H: 57.3"
With Booklet Finisher and High Capacity Feeder: W: 100.6"; D: 30.8"; H: 57.3"
With Standard Finisher and Z-folder: W: 101.4"; D: 30.8"; H: 57.3"
With Standard Finisher, Z-Folder and High Capacity Feeder: W: 103.6"; D: 30.8"; H: 57.3"
With Booklet Finisher and Z-folder: W: 101.6"; D: 30.8"; H: 57.3"
With Booklet Finisher, Z-Folder and High Capacity Feeder: W: 108.5"; D: 30.8"; H: 57.3"
FreeFlow Print Server, Monitor, Keyboard, Mouse & Stand: W: 30.0"; D: 30.0"; H: 58.5"
Interface Module: W: 13.4” x D: 28.5” x H: 40.6”
High Capacity Stacker: W: 31.5” x D: 28.5” x H: 41.0” |
| Security |
| Security Features |
- Secure Print
- Image Overwrite up to 3 times (optional)
- Data Encryption (SSL/TLS) (optional)
|
| Client Requirements |
| Operating system |
Windows® 2000 SP4/XP SP2/Server 2003/Vista
Macintosh® OSX (10.3 or later) |
Suplies (RO)
| Nume |
Viata estimata |
Acoperire |
Cod |
| Cartus toner |
65000 pagini |
6% |
006R01237 |
| Cilindru |
42000 pagini |
6% |
013R00640 |
| Cartus de curatare a cuptorului |
300000 pagini |
6% |
008R13000 |
| Black developer |
6000000 pagini |
6% |
005R00704 |
| Cutie capse 50 coli (Standard Finisher) |
3 x 5000 |
-% |
008R12920 |
| Cartus capse 50 coli (Standard Finisher) |
5000 |
-% |
008R12919 |
| Cutie capse (Booklet Maker Finisher) |
4 x 5000 |
-% |
008R12925 |
| Rezervor toner rezidual |
210000 pagini |
6% |
008R13036 |
Xerox 4112 User Documentation
